Description

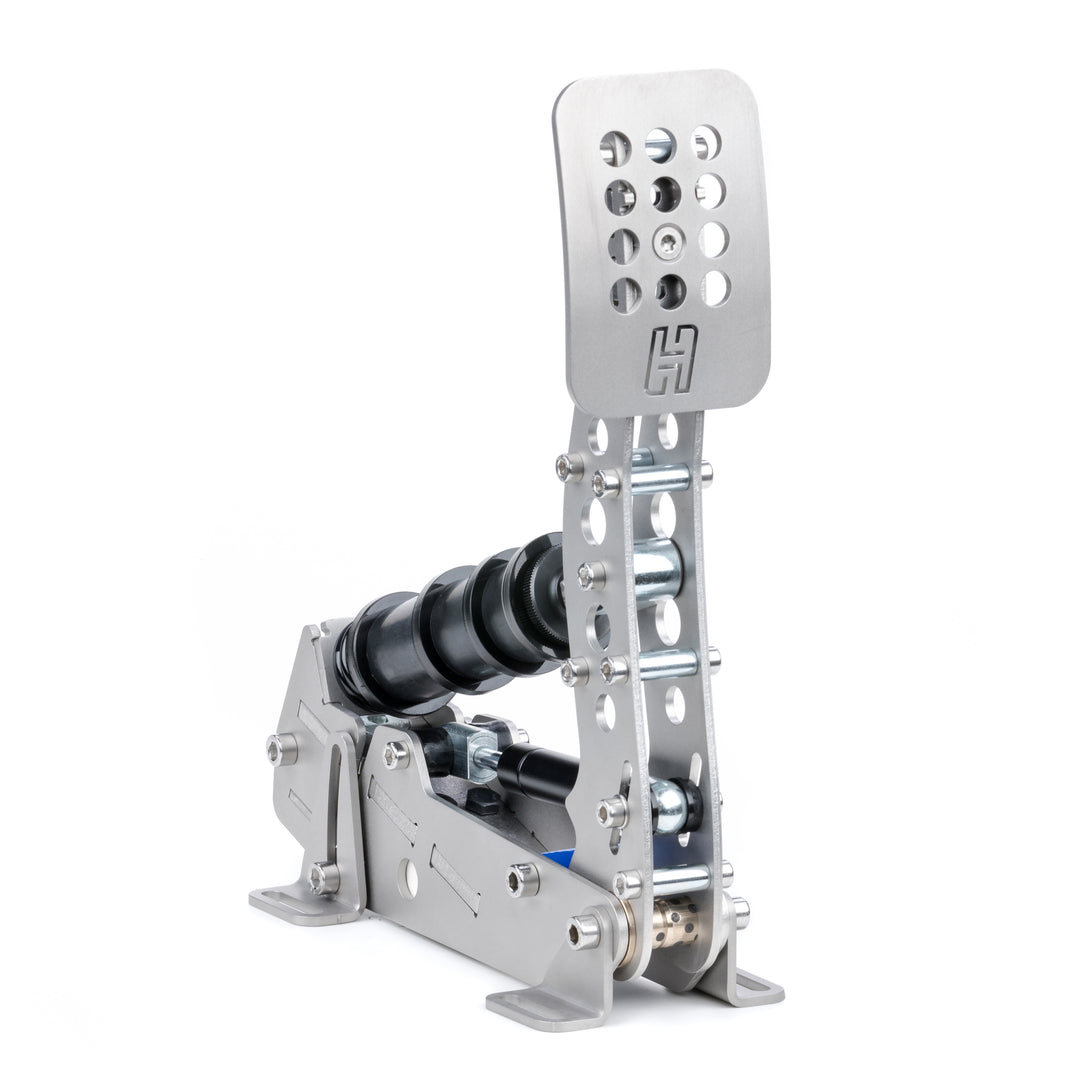

sim pedals ultimate Refurbished Heusinkveld Ultimate+ Pedals (Silver, 3-pedal set – ThrottVersion: Silver, 3 pedal set Throttle + Brake + Clutch, No Baseplate Heusinkveld Sim Pedals Ultimate+ Silver Professional Precision, Realistic Feel The Ultimate+ Silver pedals are Heusinkvelds most advanced set, designed for top tier professional simulators. Built from precision stainless steel, featuring load cell sensors, custom elastomers, and hydraulic damping on all three pedals, they deliver a realistic, high fidelity response capable of
Version: Silver, 3-pedal set – Throttle + Brake + Clutch, No Baseplate
Heusinkveld Sim Pedals Ultimate+ Silver – Professional Precision, Realistic Feel
The Ultimate+ Silver pedals are Heusinkveld’s most advanced set, designed for top-tier professional simulators. Built from precision stainless steel, featuring load cell sensors, custom elastomers, and hydraulic damping on all three pedals, they deliver a realistic, high-fidelity response capable of handling up to 140 kg of braking force. Used by GT, Formula, and top esports drivers, they are a benchmark in realistic simulation.
Key Advantages
- Fully adjustable pedals: travel, resistance, angle, and force.
- Stainless steel laser-cut structure, engineered with optimized tolerances to eliminate play.
- Up to 140 kg of real braking force, with a 200 kg-rated load cell.
- Hydraulic damping on all three pedals, adjustable on both compression and rebound.
- Advanced SmartControl & SmartControl Live integration—no recalibration needed per session.
High-Precision Structural Design
- Developed with CAD and FEA analysis, tested for over 1 million cycles without performance loss.
- All pivot points use durable sliding bearings.
- Glass bead blasted finish for a premium look and corrosion resistance.
Individual Pedal Features
Throttle
- Ultra-precise linear movement with load cell sensor.
- 1-way hydraulic damper for smoother application.
- Independent adjustments for preload, travel, and resistance.
Brake
- Two-stage braking system with exclusive thermoset elastomers.
- 2-way hydraulic damper (resistance on compression and rebound).
- 9 different stiffness configurations, from soft to extremely stiff.
- Faithfully replicates the feel of a real competition brake system.
Clutch
- Regressive spring mechanism reproducing the real clutch force curve.
- Adjustable 2-way hydraulic damper.
- Progressive pedal feel with dynamic return.
SmartControl + SmartControl Live
- Non-linear curve editor, dead zone tuning, and brake force adjustment.
- Instant profile switching without leaving the simulator.
- Cross-compatible with other SmartControl products (pedals, handbrake, shifter).
- No recalibration required between sessions (even in iRacing).
Included in the Box
- Set of 3 pedals (throttle, brake, clutch)
- 12-bit USB control box (steel housing with mounting points)
- Mounting bolts and printed quick-start guide
Technical Specifications
| Feature | Detail |
|---|---|
| Material | Laser-cut stainless steel |
| Max Brake Force | Up to 140 kg (200 kg load cell) |
| Damping | Adjustable hydraulic damping on all 3 pedals |
| Sensors | Linear load cells (12-bit resolution) |
| Adjustments | Preload, travel, stiffness, output curve |
| Software | SmartControl + SmartControl Live |
| Compatibility | PC (Windows 10 or later) – Not console compatible |
| Certification | CE + EMC compliance |
| Mounting | Requires full simulator rig |
Installation Recommendations
- Not recommended for floor mounting or stands without a fixed seat.
- Use of the Ultimate+ Baseplate is advised for rigid, adjustable mounting.
- Pre-calibrated at factory, ready to use (Plug & Play).
Pedals for Those Who Demand the Best
The Heusinkveld Ultimate+ Silver pedals are the ultimate choice for professional drivers, simulation centers, racing teams, and advanced sim racers who demand the highest level of realism, durability, and customizable performance.
